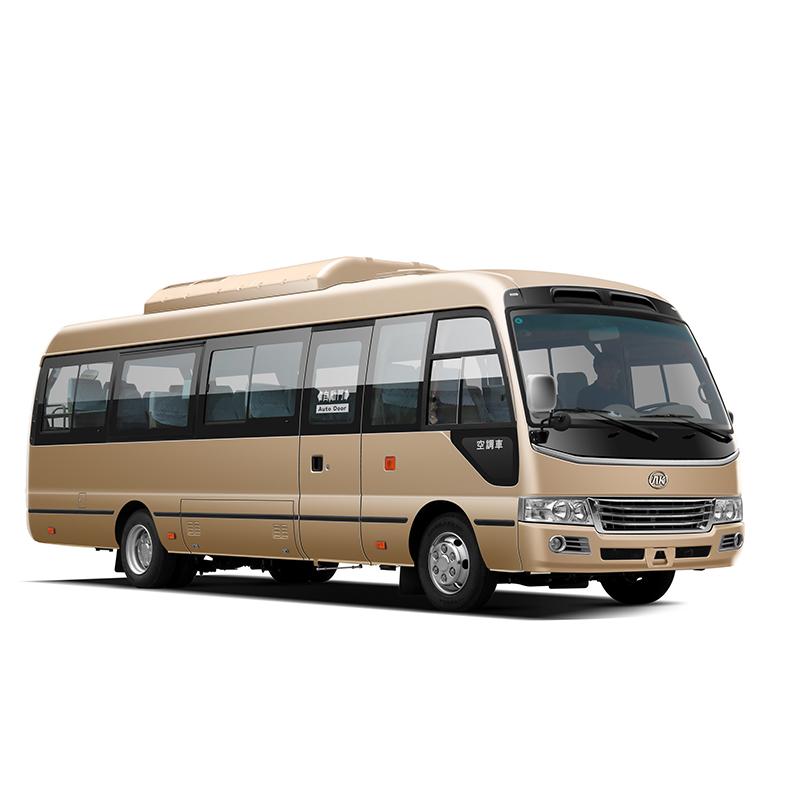

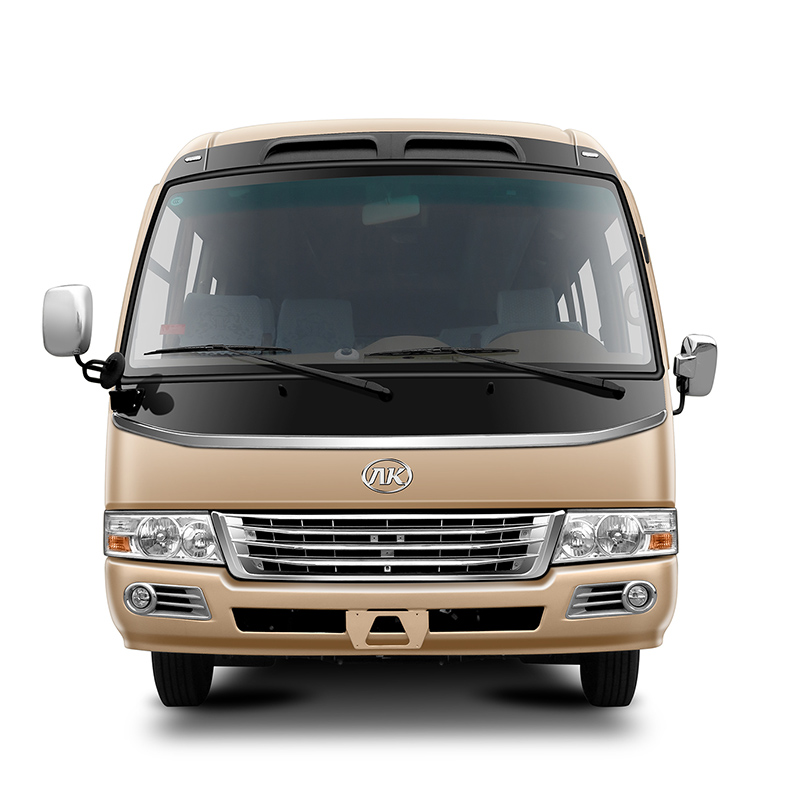

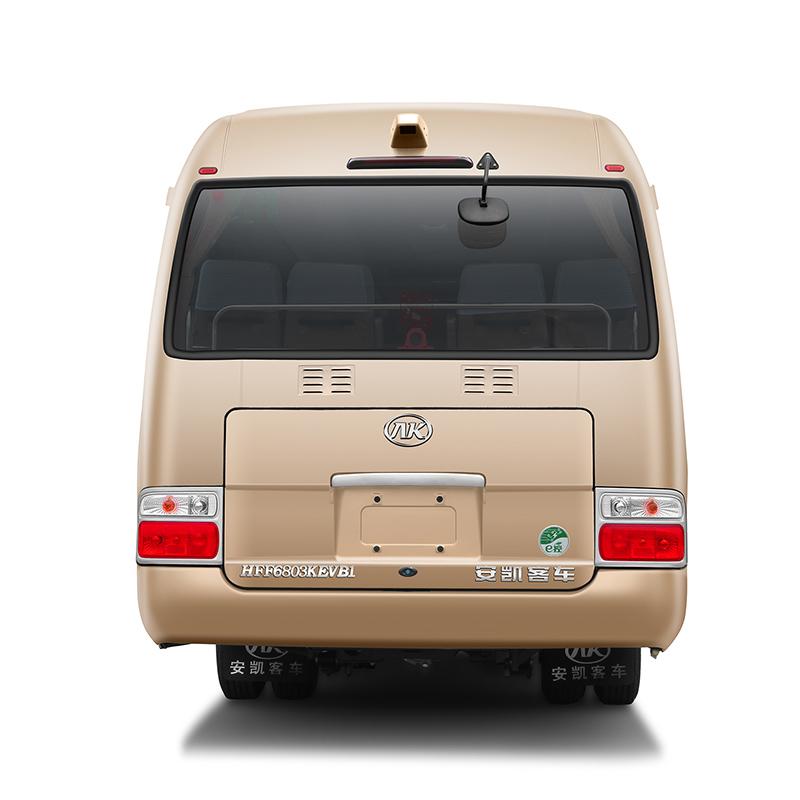

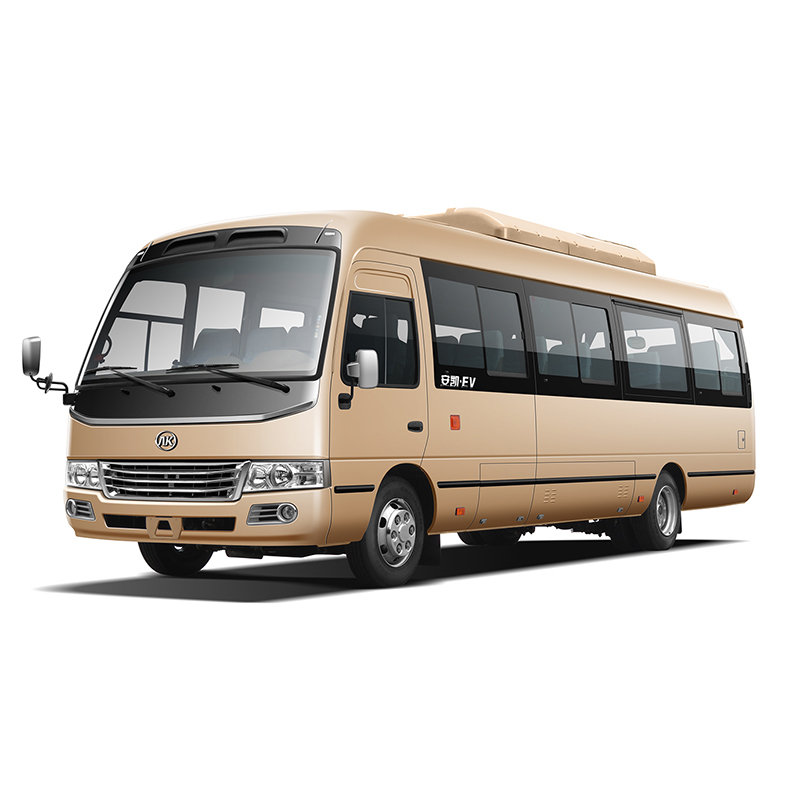

Ankai 8M electric coaster mini bus

F7 electric coaster mini bus has a stylish and classic appearance, smooth body lines, superior performance and driving comfort。
  • Item No.:

    HFF6821KEV1
  • Payment:

    L/C, D/A, D/P, T/T
  • Product origin:

    China
  • Color:

    Optional
  • Shipping port:

    China port
  • Lead Time:

    60 days
Follow Us :
  • Product Detail

electric coaster mini bus

The classic streamline modeling changes the journey into a wandering stage.

The integrated power combination brings the driving/riding back to original pleasure.

The elegant, comfortable, and calm space emerges charming and taste in every detail.

new energy bus


Safety

Highly integrated controllers

Vehicle system-level EMC design
6-level protection design for high voltage system of vehicle


electric coaster bus


Reliability

Wading depth protection: wading test at 5~10km/h in 30cm deep water
IP67 high protection grade design
Isolation between battery and passenger compartment
Charging contactor seizure protection and temperature control
Vehicle brake override system
Vehicle steering priority system
coaster mini bus


Energy saving

Independent permanent magnet synchronous drive motor
Permanent magnet synchronous steering system
Permanent magnet synchronous inflation pump system
EBS braking energy recovery control system

Cruise vehicle power system optimization and matching



Main Parameters

Dimensions(mm) 8200×2280×2745(2975)
Seats 32+1(24-33)
G.V.W(kg) 10500
Front/rear Suspension(mm) 1150/2060
Wheelbase(mm) 4500
Maximum Speed(km/h) 100
Working Condition Mileage ( With A/C/No A/C)(km) 180/220


Main Configurations

Lithium Battery Battery Power 121.13kwh
Motor Power 80/150KW
Motor Controller Five-in-one controller
Vehicle Controller AKECU-1
Suspension System Leaf spring suspension/Front 3 Rear 4
Front Axle Front Axle 3.5T/Disc Brake
Rear Axle Rear Axle 7T/Disc Brake
Service Brake Double circuit pneumatic brake、Self-adjusting arm
ABS YES
Steering System Power Steering
Tires 235/75R17.5
Body Frame Semi-Monocoque
A/C Overhead A/C、Cooling Capacity 22000Kcal/h
Heater Optional
TV Optional
Passenger Door Pneumatic folding door
Others Vehicle Electrophoresis、Reversing monitor、Multimedia machine


Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
new energy bus
Ankai electric G9 has a smart and lightweight design, spacious and comfortable driving space, equipped with multiple intelligent driving technologies.
View more

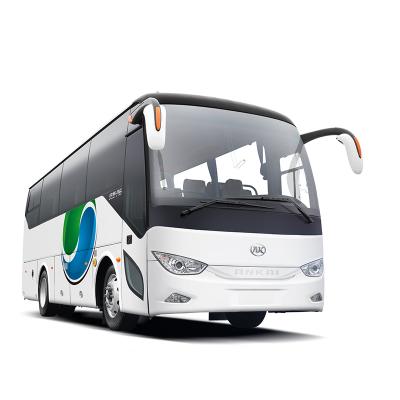

33 seats electric coach bus
