Monocoque technology
Ankai boasts the world’s leading Monocoque technology, which combines with the advanced finite element
analysis to realize the perfect balance between high stiffness and lightweight, with the strength and torsion
resistance at 3~6 times of conventional buses

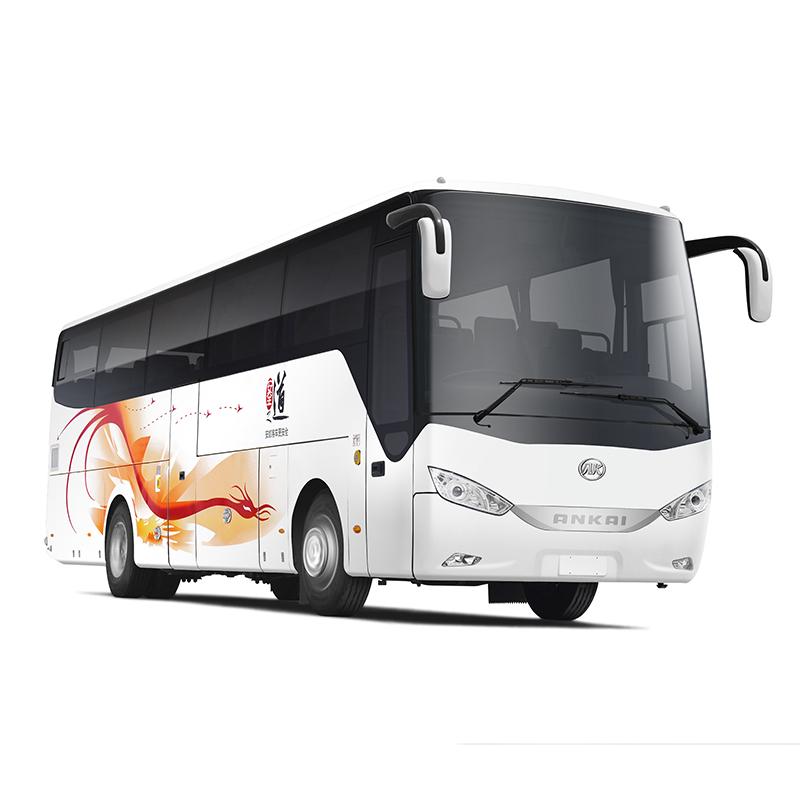

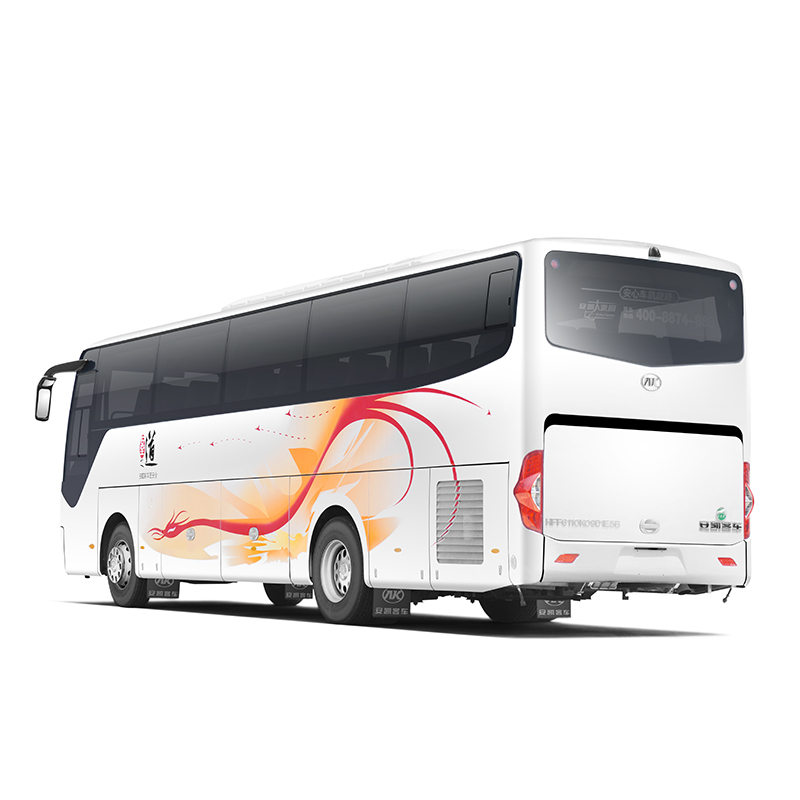

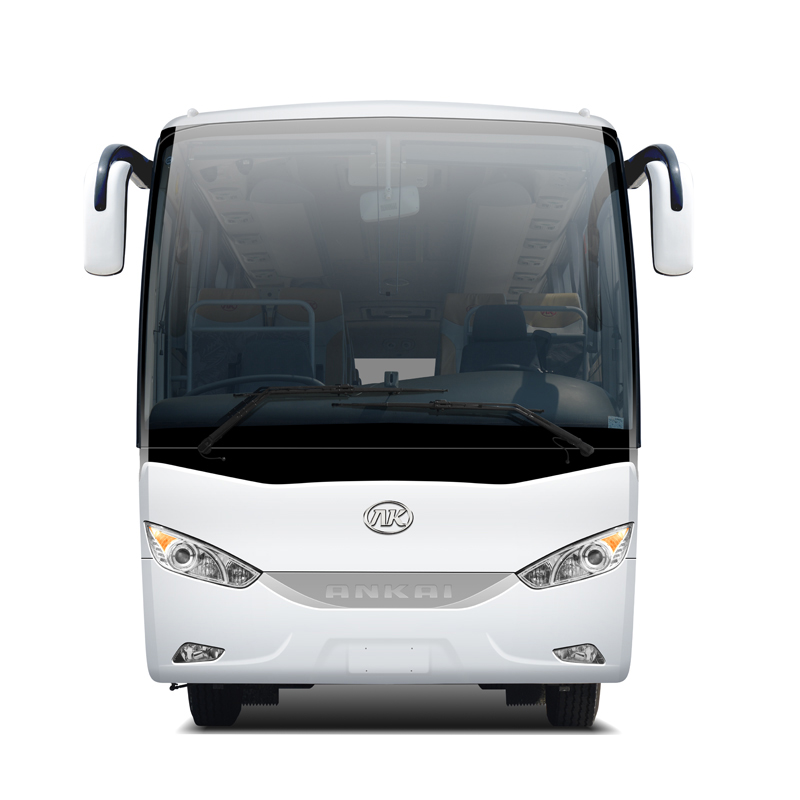

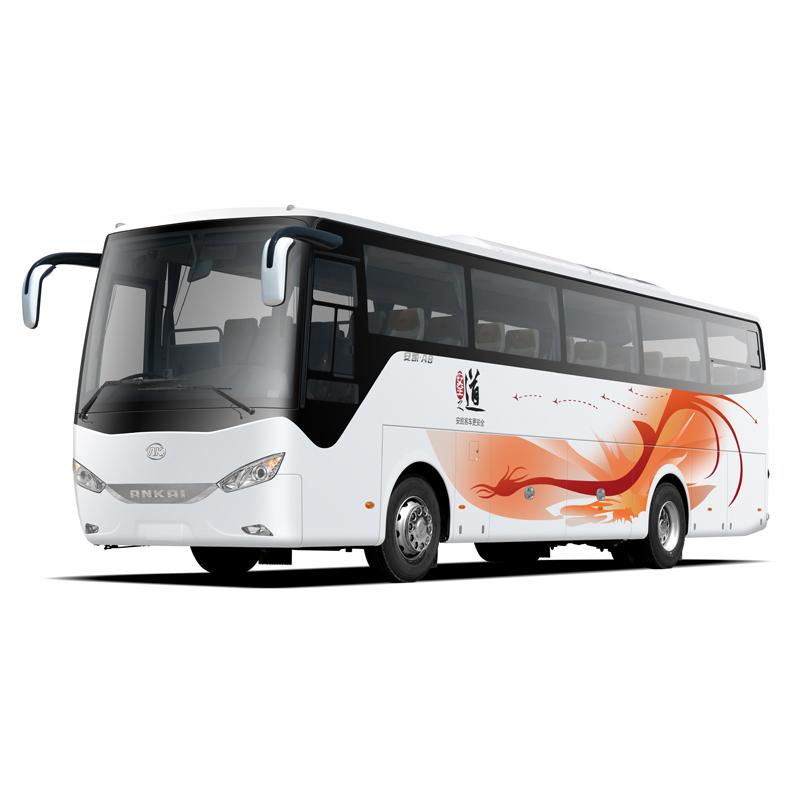

A8 series 11m single-deck model
Driver fatigue identification and pre-warning system (optional)
The image-based biometric identification technology acquires the fatigue characteristics from the multiple
areas of the driver's face and combines with the driver’s driving behaviors to give the final fatigue estimation.
Upon identification of the driver’s fatigue, the sound-light alarm and vibration alarm are triggered to provide
driver with strong stimulations and prevent the occurrence of traffic accidents

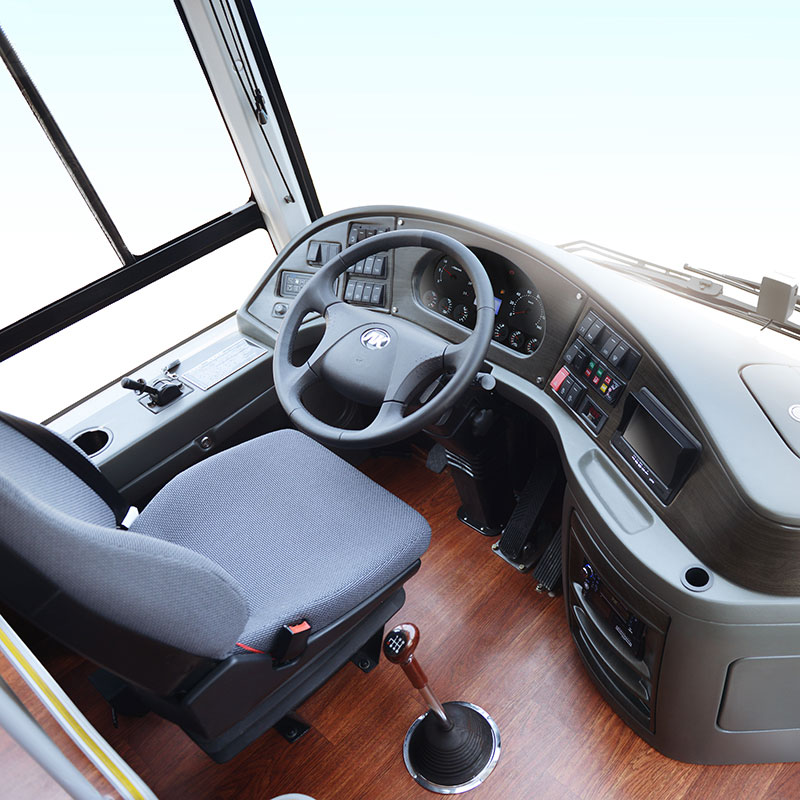

Driver seat
Lane departure and front collision pre-warning system (optional)
In event of unconscious departure from current lane or too close spacing from vehicle ahead, the system will provide
the sound and light warnings to remind the driver of taking measures and preventing accidents

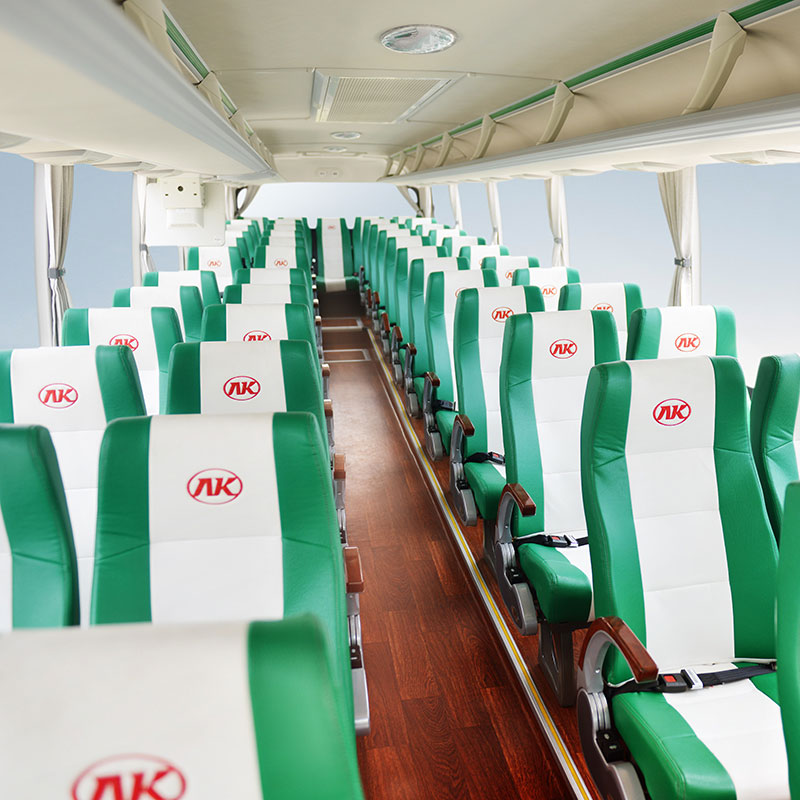

Passenger seat
Double alternator system
Two alternators of the whole vehicle are in parallel connection so that, in event of malfunction of one alternator,
the other alternator can still provide power supply to the whole vehicle, in order to prevent breakdown and
at the same time improve the reliability and reduce the power consumption of the engine.
Main Parameters
| Dimensions(mm) | 10990×2500×3550 | |
| Seats | 47+1（24-50） | |
| G.V.W(kg) | 15800 | |
| Front/rear Suspension(mm) | 2260/3280 | |
| Wheelbase（mm） | 5450 | |
| Fuel Tank Capacity(L) | 260L | |
| Maximum Speed(km/h) | 100 | |
Main Configurations
| Engine Type | WP7.300E51 | YC6L280-30 |
| Emission Standards | Euro V | Euro III |
| Gearbox | YES | |
| Retarder | YES | |
| Clutch | YES | |
| Suspension System | Air Suspension | |
| Front Axle | Front Axle 5.5T/Disc Brake | |
| Rear Axle | Rear Axle 11T/Drum Brake | |
| Service Brake | Double circuit pneumatic brake、Self-adjusting arm | |
| ABS | YES | |
| Steering System | Power Steering | |
| Tires | 11R22.5 | |
| Body Frame | Monocoque | |
| A/C | Overhead A/C、Cooling Capacity 28000Kcal/h | |
| Heater | Optional | |
| Luggage Compartment | Flip-on luggage compartment door | |
| TV | Optional | |
| Passenger Door | Pneumatic swing door | |
| Others | Vehicle Electrophoresis、Electromagnetic Fan Clutch | |
