Stable power steering system

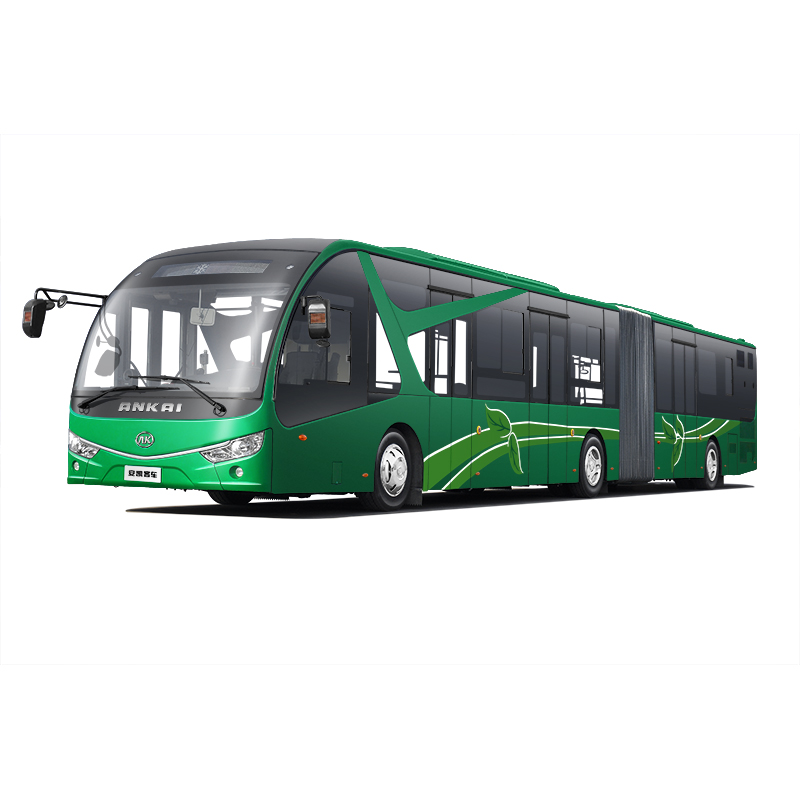

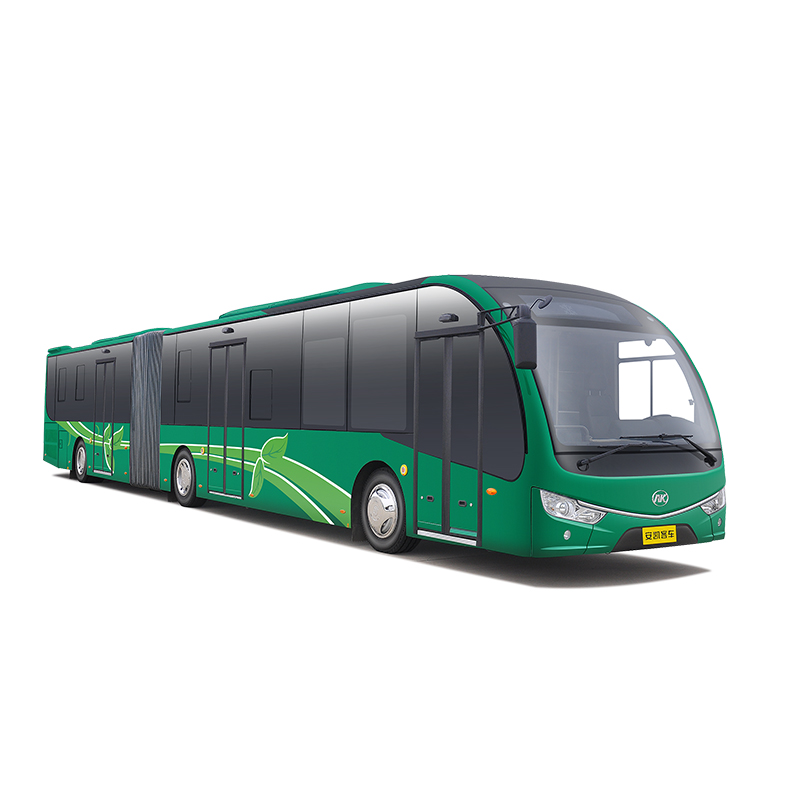

The steering system of Ankai BRT bus adopts an adjustable power steering system,
which can effectively reduce the height of the driver's floor, and the transmission parts are convenient to connect
Superior braking system
Reasonable arrangement of brake pedal, use of high-quality braking system, and auxiliary braking of retarder
Handy variable speed control system
Long-distance flexible shaft control is added to the whole vehicle to increase the flexibility of shifting

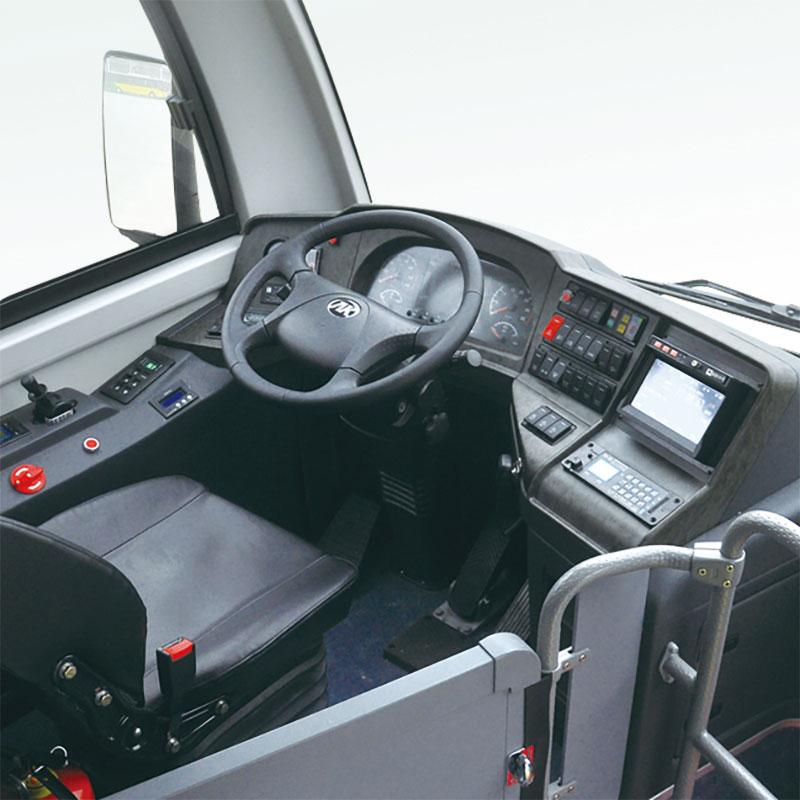

Reasonable instrument area layout
The buttons in the instrument area are reasonably arranged, and the driver is within reach, reducing driving fatigue
Main Parameters
| Dimensions(mm) | 18000×2550×3150(3250) | |
| Seats | 42+1 | |
| G.V.W(kg) | 28000 | |
| Front/rear Suspension(mm) | 2710/3400 | |
| Wheelbase(Front Middle /Middle Rear) (mm) | 5845/6045 | |
| Fuel Tank Capacity(L) | 250 | |
| Maximum Speed(km/h) | 69 | |
Main Configurations
| Engine Type | YC6L310-50 | YC6L310-30 |
| Emission Standards | National V | Euro III |
| Gearbox | AT | |
| Retarder | YES | |
| Clutch | NO | |
| Suspension System | Air Suspension | |
| Front Axle | Dongfeng Dana Maebashi/Disc Brake | |
| Suspension Axle | Dongfeng Dana Suspension Axle/Disc Brake | |
| Drive Axle | Dongfeng Dana Drive Axle/Drum Brake | |
| Service Brake | Double circuit pneumatic brake、Self-adjusting arm | |
| ABS | ABS(WABCO) | |
| Steering System | 8098 | |
| Tires | 275/70R22.5 | |
| Body Frame | Monocoque | |
| A/C | Optional | |
| Heater | Optional | |
| Passenger Door | Pneumatic Swing Door | |
| Others |
Vehicle Electrophoresis、Reversing Monitor |
|
