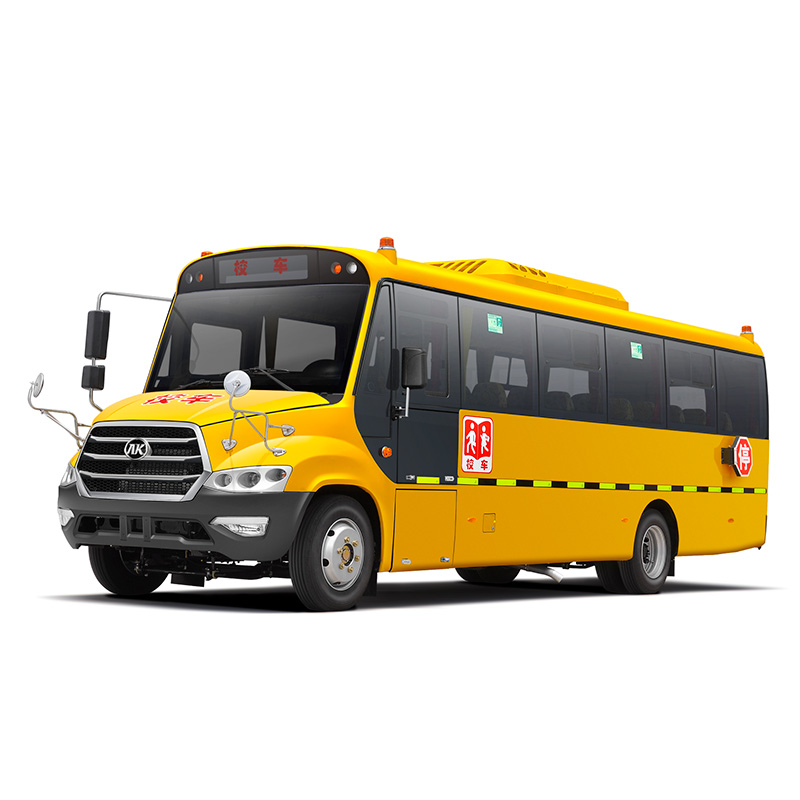

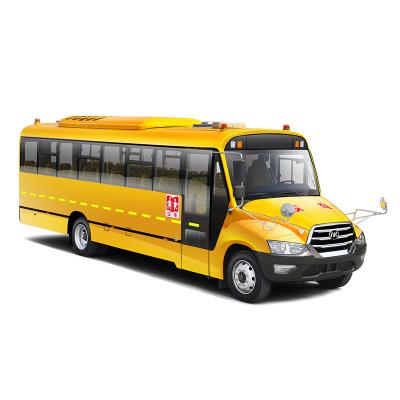

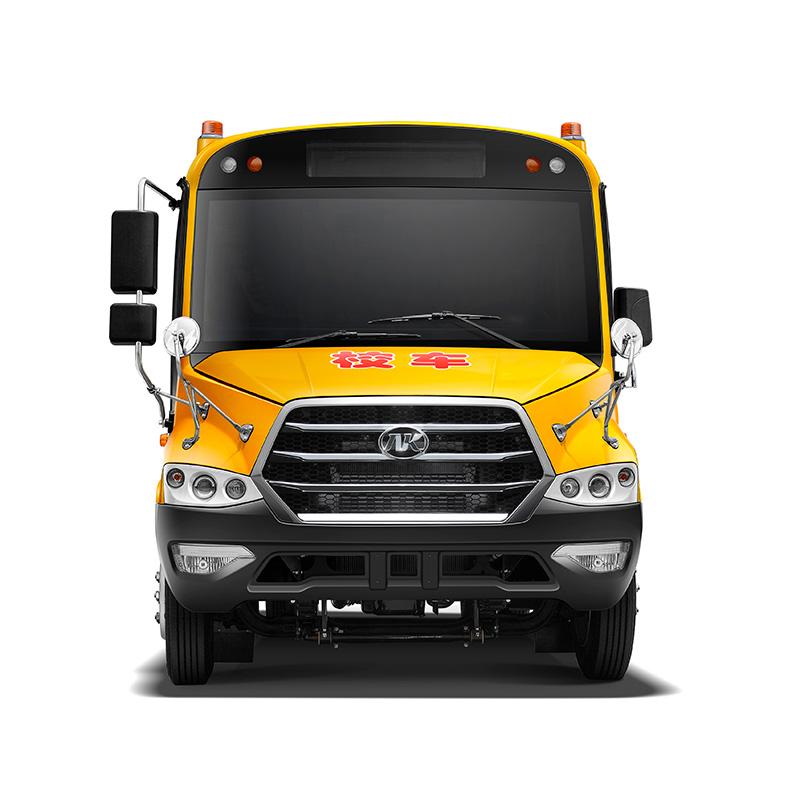

Ankai 8M diesel school bus for middle school student

Suitable for normal road, width 2260mm, good applicability
  • Item No.:

    HFF6801KZ5
  • Payment:

    L/C, D/A, D/P, T/T
  • Product origin:

    China
  • Color:

    Yellow
  • Product weight:

    8000
  • Shipping port:

    China port
  • Lead Time:

    60 days
Follow Us :
  • Product Detail

diesel school bus

yellow school bus

middle school bus

Safe and reliable

All-metal stamping and forming, with anti-collision beams embedded inside,

effectively reducing body deformation and damage to members in accidents.


8M diesel school bus

Adopt the large size safety door design,  fat body is easier to escape.

The design of the rear wall lamps introduces Chinese knot elements.

When the rear lights of the vehicle are on, it will impress children and passers-by.

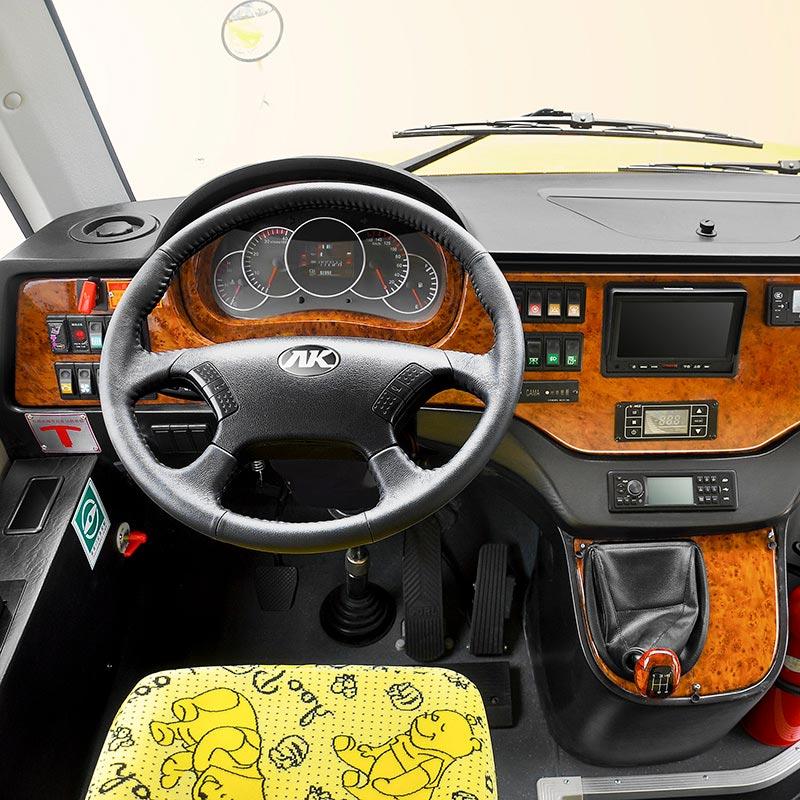

With the car-like instrument panel design, it is more convenient for the driver to control each function button,

and the daily driving is safer, and the commonly used switches are within easy reach.




Main Parameters

Dimensions(mm) 7995×2260×2875(3010)
Seats 28+1+1(24-30)
G.V.W(kg) 8000
Front/rear Suspension(mm) 1000/2395
Wheelbase(mm) 4600
Fuel Tank Capacity(L) 110L
Maximum Speed(km/h) 80


Main Configurations

Engine Type
WP3.7Q130E50
Emission Standards
Euro V
Gearbox
YES
Clutch
YES
Suspension System
Leaf spring suspension/Front 3 Rear 4
Front Axle
Front Axle 3.5T/Disc Brake
Rear Axle
Rear Axle 5.0T/Drum Brake
Automatic gap adjustment arm
YES
ABS
YES
Service Brake
Double circuit air brake
Retarder
NO
Steering System
Power Steering
Tires
215/75R17.5
A/C
Optional
Heater
Optional
Video surveillance system inside and outside the vehicle
YES
Passenger door/security door
Front pneumatic swing-out door/rear open safety door
Automatic fire extinguishing device
YES
Fore cabin temperature alarm
YES
Door alarm device
YES
Others
Vehicle Electrophoresis、Reversing monitor、Patrol system
