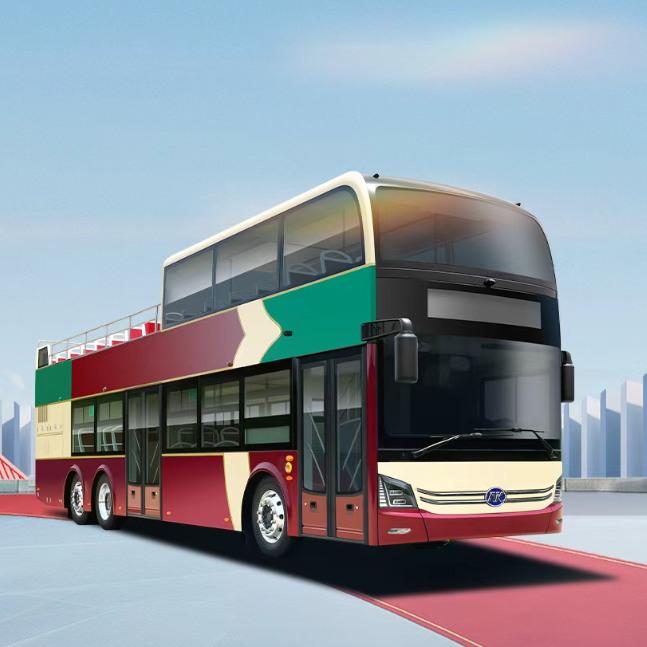

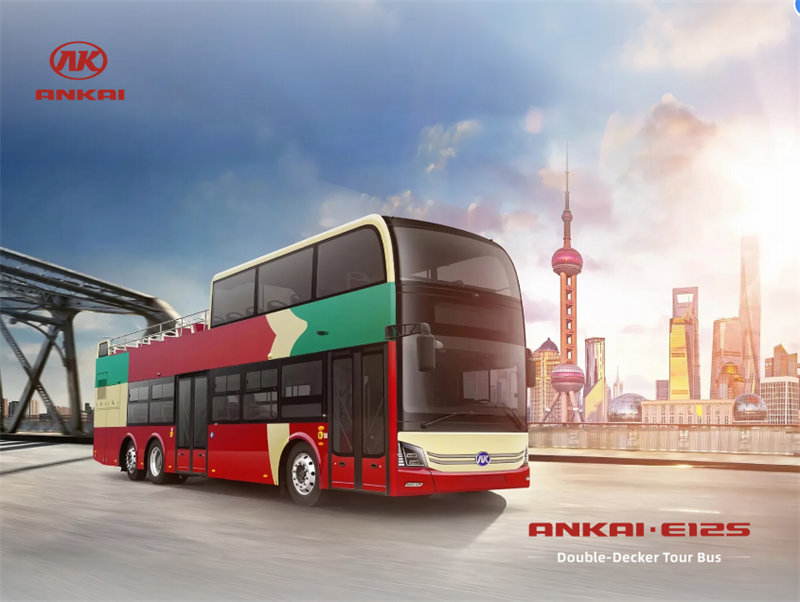

The double-decker tour bus excels with panoramic views, an open-top upper deck, and flexible routes, precisely targeting the urban tourism and short-distance sightseeing markets. It emphasizes immersive experiences for tourists, with customizable designs that combine brand promotion and land-mark photo opportunities. Primarily serving scenic area shuttles, city tours, and cultural theme travel, it is a mobile attraction that blends transportation and sightseeing.

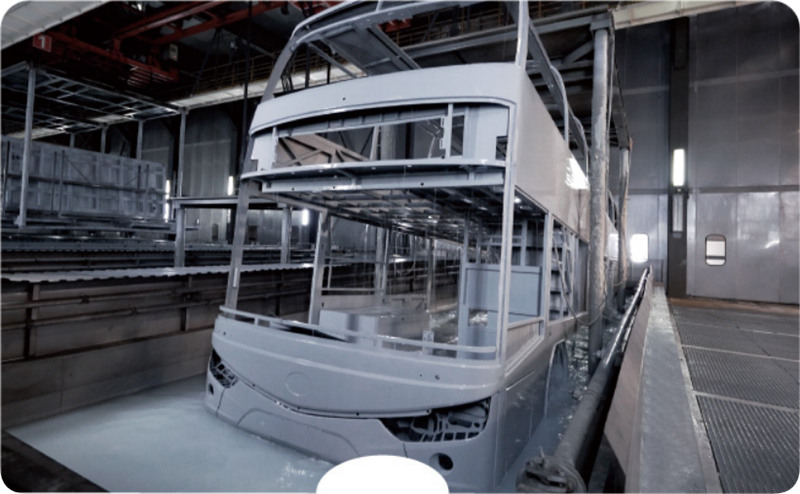

Full Vehicle Cathodic Electrophoresis

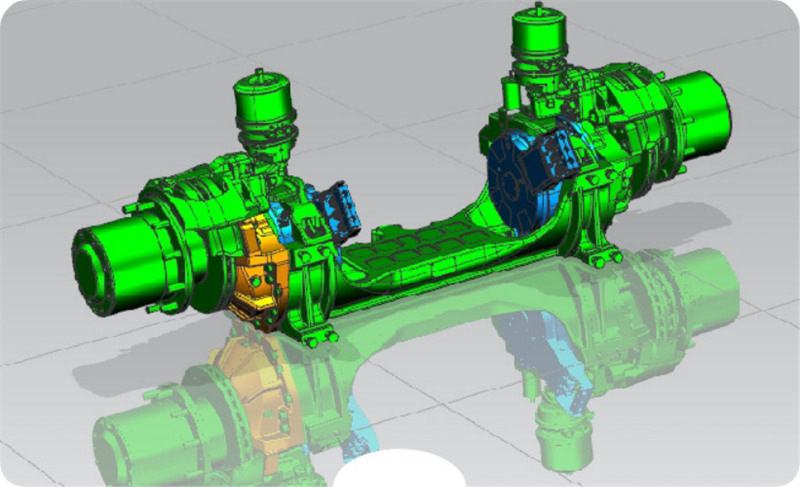

Wheel-side Drive Motor
The wheel-side motor achieves over 10% improvement in torque and power output, while reducing weight by 5%- 20% and energy consumption by approximately 10%. This design allows for more interior space, along with improved off-road capability and safety.

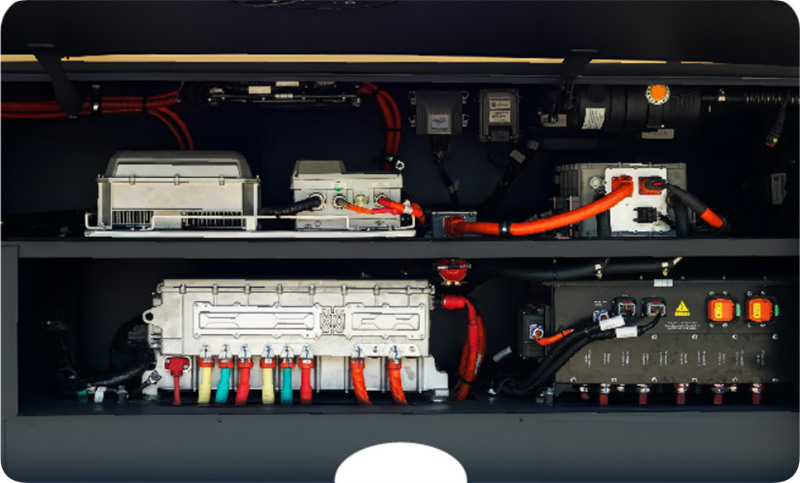

Reliable Key Components
Critical components are durable and reliable. A high-temperature-resistant wiring harness system is adopted to enhance driving safety.
Four-layer Power Battery Protection
Includes a four-layer protection system for the power battery:over-current, over-voltage, over-charge, and over-discharge protection; smoke detection with wireless alarm; fire-resistant and flame-retardant battery design; and an automatic fire suppression system.
High-Energy-Density Battery
Utilizes high- energy-density lithium iron phosphate (LiFePO4) power batteries. The battery box features a standardized modular structure, facilitating vehicle integration. Lightweight LiFePO4 battery PACK technology is applied, effectively reducing battery weight and overall energy consumption.
Six-tier Vehicle Safety System
The vehicle incorporates a comprehensive six-tier safety technology framework covering high-voltage safety,structural safety, fire safety, control safety, environmental adaptability, and electromagnetic safety. This ensures overall safety and reliability throughout the entire vehicle lifecycle.
Intelligent Control Terminal Technology

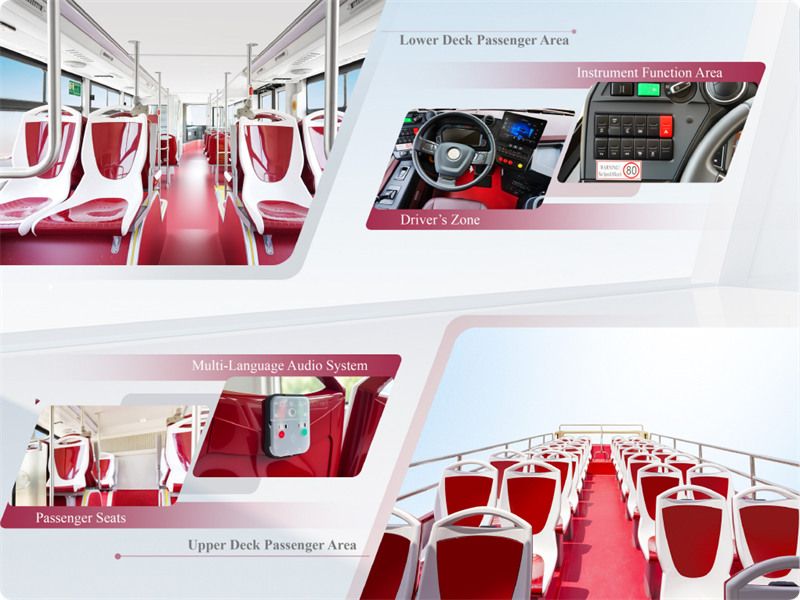

Equipped with a 10. l-inch intelligent control terminal screen that integrates vehicle monitoring, control, and system settings. It features user-friendly operation, multi-layered safety, and smart functionality.
Active Safety Assurance Systems
Features Advanced Driver Distraction Warning (ADDW),Lane Departure Warming (LDW)， Pedestrian Collision Warning (PCW), Forward Collision Warning (FCW), and Time Headway Monitoring & Warning (THW). These functions significantly enhance forward safety and driving compliance.

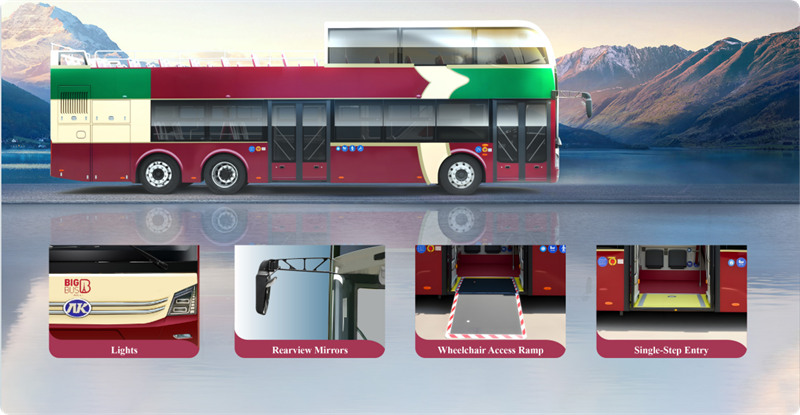

Personalized Customization Options
While meeting diverse travel needs, the Ankai double-decker tour bus can be equipped with additional features such as image display counters, service bars, coffee machines, vending machines, and KTV audio systems. It can also incorporate IP trends, trendy toys, and new cultural creative elements into the interior, allowing passengers to immerse themselves in unlocking premium travel experiences.
Main Parameters
| Vehicle Parameters | Standard Seating Capacity | 70+1 (Upper deck 50 / Lower deck 20+2+1) |
| Number of Occupants | 105 / 71 | |
| Exterior Dimensions (mm) | 12000 × 2550 × 4000 | |
| Approach Angle / Departure Angle (°) | 9/9 | |
| Wheelbase (mm) | 5410 + 1520 | |
| Curb Weight (kg) | 14750 | |
| Maximum Total Mass (kg) | 23000 | |
| Maximum Speed (km/h) | 80 | |
| Vehicle Standard Features | Vehicle Control Unit | AKECU-1 |
| Drive Motor | Rated Power 95kW × 2 / Peak Power 163kW × 2 | |
| Motor Controller | Integrated Multi-function Controller | |
| Power Battery Brand | CATL | |
| Battery Capacity | 331.37kWh | |
| Front / Rear Axle | Front 7.5T Axle / Middle 13T Axle / Rear 7.5T Axle / Maintenance-Free Wheel Ends | |
| Body Structure | Full Monocoque Body Structure / Whole-Vehicle Cathodic Electrophoretic Coating | |
| Suspension System | Front 2-Axle / Middle 4-Axle / Rear 2-Axle Air Suspension | |
| Service Brake / Parking Brake | Dual circle air brake; Front disc / Middle disc / Rear disc brake with storage spring | |
| Steering System | Dual-Power Electric Hydraulic Power Steering | |
| Tires | 275/70R22.5 |
