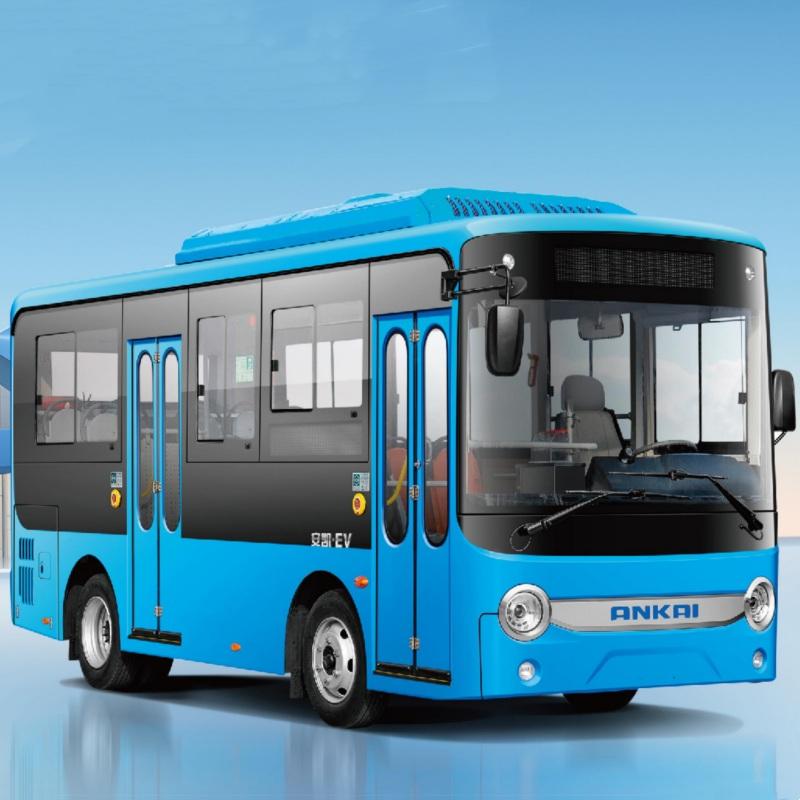

Ankai EV G Series Electric City Bus. Specifically highlighting the compact G6OE and the slightly larger G70E models, this series is engineered to deliver a powerful, quiet, and eco-friendly solution for urban and suburban routes, particularly microcirculation lines, branch routes, and transit in smaller cities.
Built upon Ankai's cutting-edge electric vehicle technology, the G Series combines a highly agile, ergonomic design with an efficient, zero-emission electric powertrain. It is the perfect blend of maneuverability, passenger comfort, and operational economy.
Main Features & Advantages
Zero-Emission Green Mobility: Equipped with a high-performance Lithium Iron Phosphate (LFP) power battery and a Permanent Magnet Synchronous Motor, the G Series offers a completely emission-free travel experience, significantly reducing the city's carbon footprint.
High Agility and Maneuverability: The compact body sizes (approx. 6m for G6OE and 7m for G70E) combined with a optimized wheelbase design allow for superior turning radii, making them ideal for navigating narrow urban roads and high-density traffic.

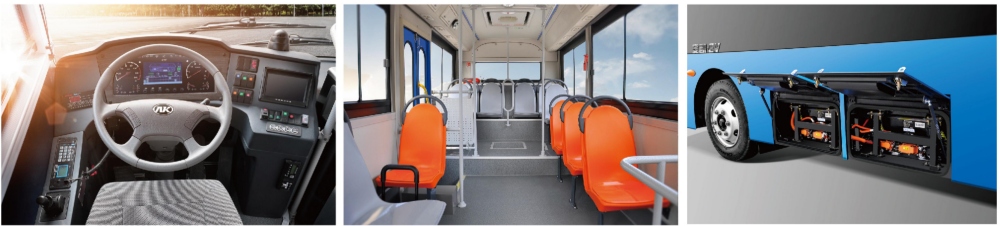

Spacious & Human-Centric Interior: The interior design prioritizes passenger flow and comfort. Features include a low-entry design (where applicable), wide doors, comfortable seats, and large side windows for bright, pleasant rides. The driver's cabin is ergonomically designed for reduced fatigue.
Integrated Intelligent Control: Utilizing Ankai's advanced vehicle control unit (VCU) and intelligent power management system, the bus ensures optimal power output, efficient energy recovery, and real-time operational diagnostics.
Safety and Reliability: Constructed with a robust body frame and equipped with essential safety systems (like ABS, dual-circuit pneumatic brake, and battery compartment fire suppression), the G Series meets stringent safety standards for public transportation.
Technical Specifications (Ankai EV G Series)
| Parameter | Ankai G6OE | Ankai G70E |

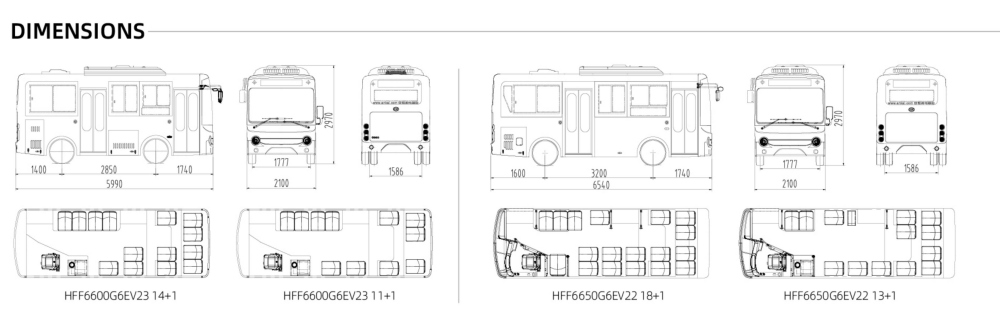

| Overall Dimensions (L×W×H, mm) | $6000 \times 2200 \times 2850$ | $7000 \times 2300 \times 2850$ |
| Seating Capacity (Driver + Seats) | $1 + 19$(Max.$10-17$Passenger Seats) | $1 + 24$(Max.$13-20$Passenger Seats) |
| Max. Passenger Capacity | $39$(Standing + Seating) | $55$(Standing + Seating) |
| Gross Vehicle Weight (GVW, kg) | $8500$ | $9500$ |
| Wheelbase (mm) | $3300$ | $4100$ |
| Power Battery Type | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) |
| Battery Capacity (kWh) | $105.42$(Based on common model variant) | $135.06$(Based on common model variant) |
| Electric Motor (kW, Peak) | $100$ | $120$ |
| Max. Gradeability (%) | $\geq 20$ | $\geq 20$ |
| Cruising Range (km, est.) | $260-320$(Depending on operating conditions) | $250-300$(Depending on operating conditions) |
| Charging Time (DC Fast Charge) | Approx.$1.5 - 2$hours | Approx.$2 - 2.5$hours |
| Body Structure | Monocoque / Semi-Monocoque | Monocoque / Semi-Monocoque |
| Braking System | Dual-Circuit Air Brake, ABS | Dual-Circuit Air Brake, ABS |
Image Display
