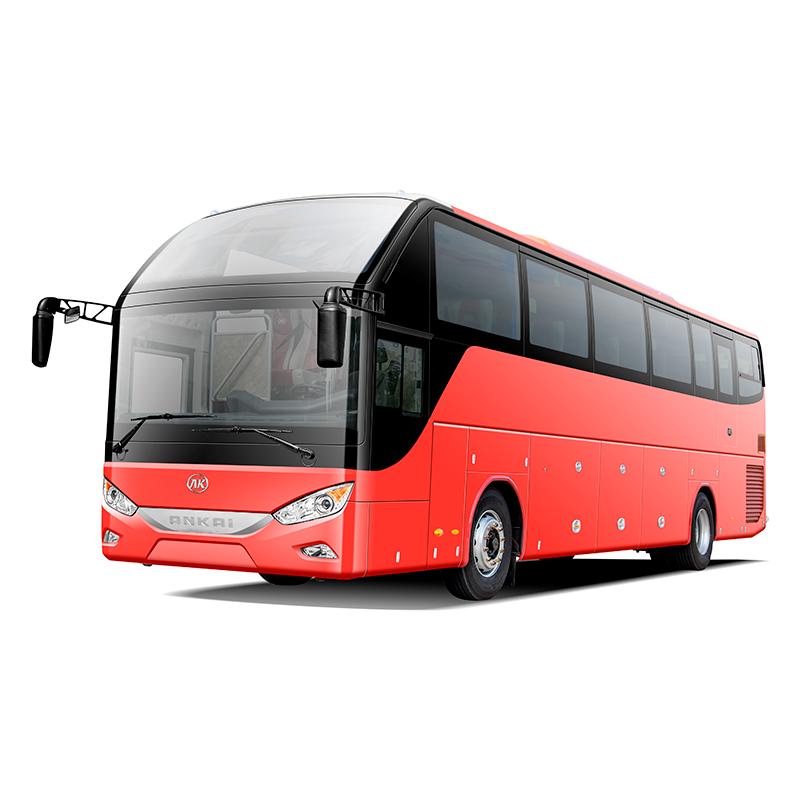

Ankai 12M luxury city to city bus

Ankai A8 series electric city to city bus has ultra-high reliability and good maintenance convenience
  • Item No.:

    HFF6120K09D1E51
  • Payment:

    L/C,D/A,D/P,T/T
  • Product origin:

    China
  • Color:

    Optional
  • Shipping port:

    China port
  • Lead Time:

    60 days
  • Warning: Illegal string offset 'text' in /home/wwwroot/lamp01/domain/ankaiglobal.com/application/modules/front/views/scripts/companyshow/default/product_detail.phtml on line 88 Warning: Invalid argument supplied for foreach() in /home/wwwroot/lamp01/domain/ankaiglobal.com/application/modules/front/views/scripts/companyshow/default/product_detail.phtml on line 88
Follow Us :
  • Product Detail

electric city to city bus


A8 series 12m double front windscreen model

12m passenger bus



Monocoque technology

 Ankai boasts the world’s leading Monocoque technology, which combines with the advanced finite

element analysis to realize the perfect balance between high stiffness and lightweight, with the strength

and torsion resistance at 3~6 times of conventional buses


electric shuttle buses



Driver fatigue identification and pre-warning system (optional)

The image-based biometric identification technology acquires the fatigue characteristics from the multiple

areas of the driver's face and combines with the driver’s driving behaviors to give the final fatigue estimation.

Upon identification of the driver’s fatigue, the sound-light alarm and vibration alarm are triggered to provide

driver with strong stimulations and prevent the occurrence of traffic accidents





Lane departure and front collision pre-warning system (optional)

 In event of unconscious departure from current lane or too close spacing from vehicle ahead, the system will provide

the sound and light warnings to remind the driver of taking measures and preventing accidents

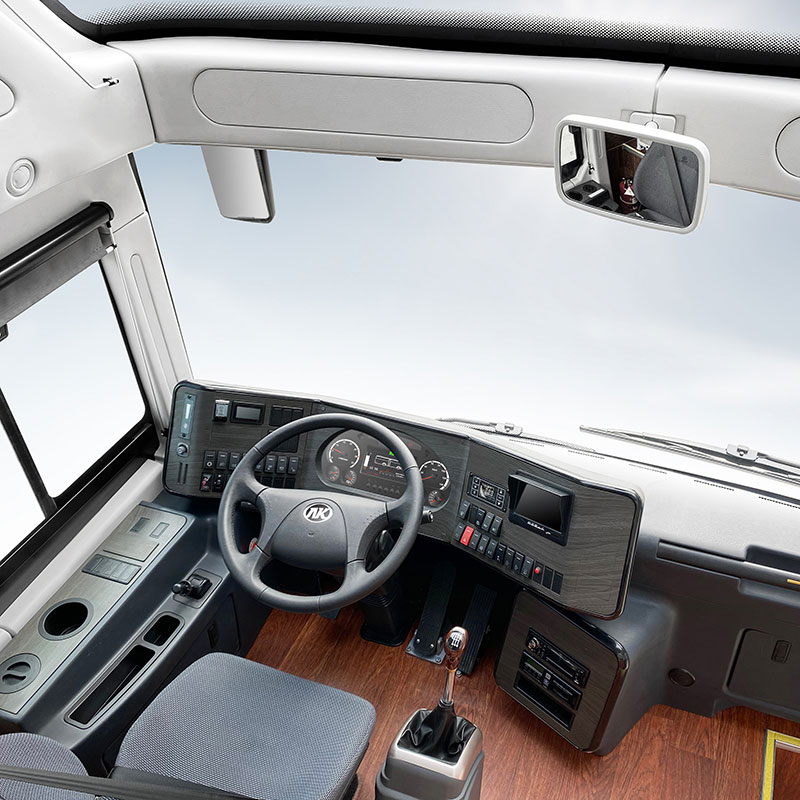

Driver seat


Safer exhaust system

 The 800ºC resistant insulation sleeve is adopted to improve the sound and heat insulation effects

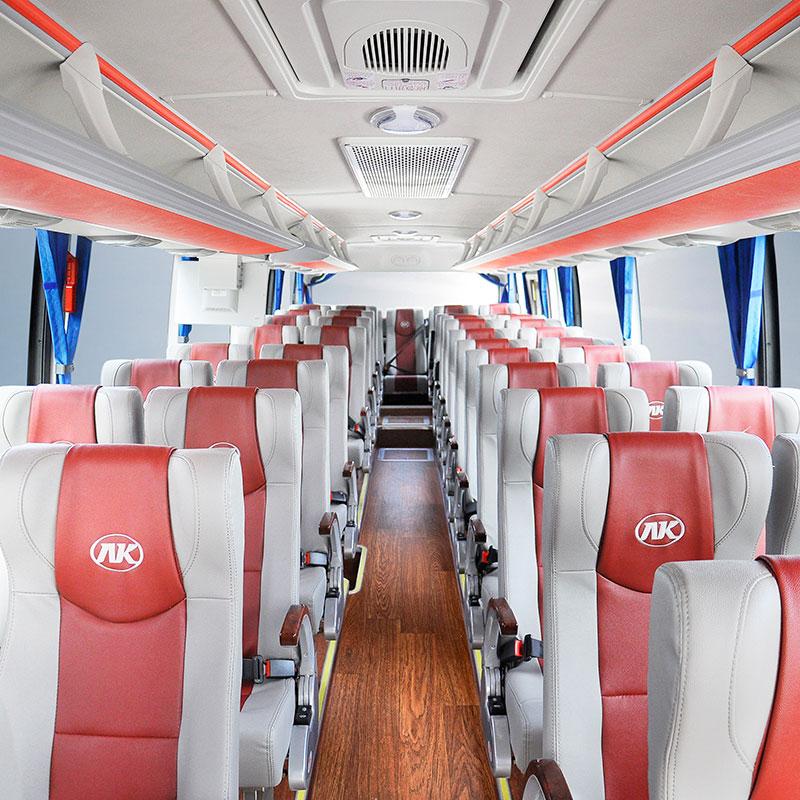

Passenger seat




Main Parameters

Dimensions(mm) 12000×2550×3770(3690)
Seats 49+1(24-56)
G.V.W(kg) 18000
Front/rear Suspension(mm) 2620/3300
Wheelbase(mm) 6080
Fuel Tank Capacity(L) 260L
Maximum Speed(km/h) 100


Main Configurations

Engine Type YC6L330-58 WP10.336E53 YC6L330-30
Emission Standards Euro V Euro V Euro III
Gearbox YES
Retarder YES
Clutch YES
Suspension System Air Suspension
Front Axle Front Axle 6.5T/Disc Brake
Rear Axle Rear Axle 13T/Drum Brake
Service Brake Double circuit pneumatic brake、Self-adjusting arm
ABS YES
Steering System Power Steering
Tires 295/80R22.5
Body Frame Monocoque
A/C Overhead A/C、Cooling Capacity 30000Kcal/h
Heater YES
Luggage Compartment Flip-on luggage compartment door
TV Optional
Passenger Door Pneumatic swing door
Others Vehicle Electrophoresis、Electromagnetic Fan Clutch
