The basic model adopts K series straight beam chassis, three steps,

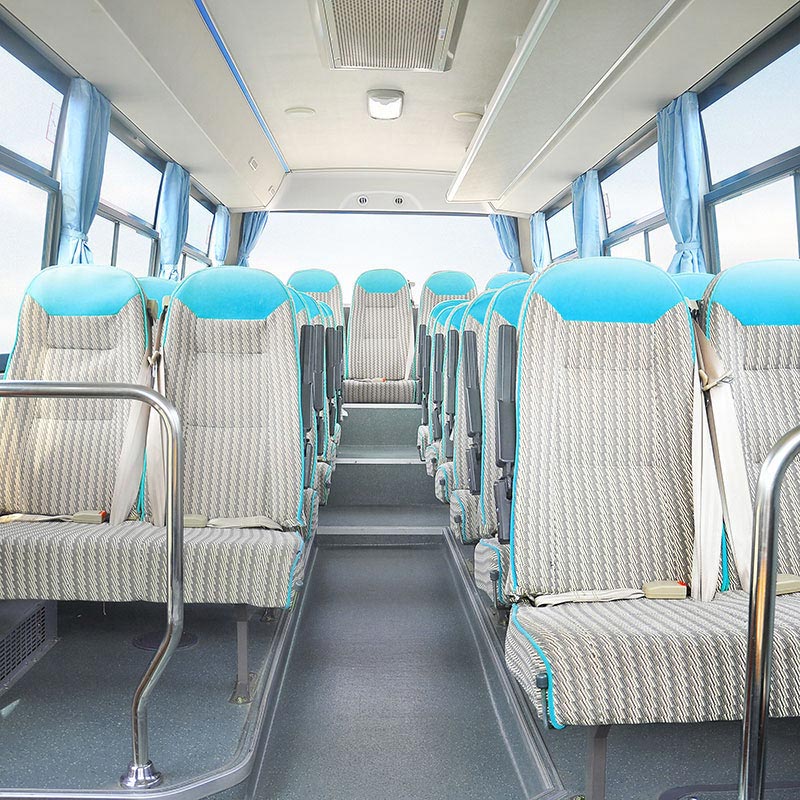

and the floor adopts a concave floor structure with aisles；
Optional curved girder chassis, equipped with few leaf springs and flat floor to improve vehicle comfort

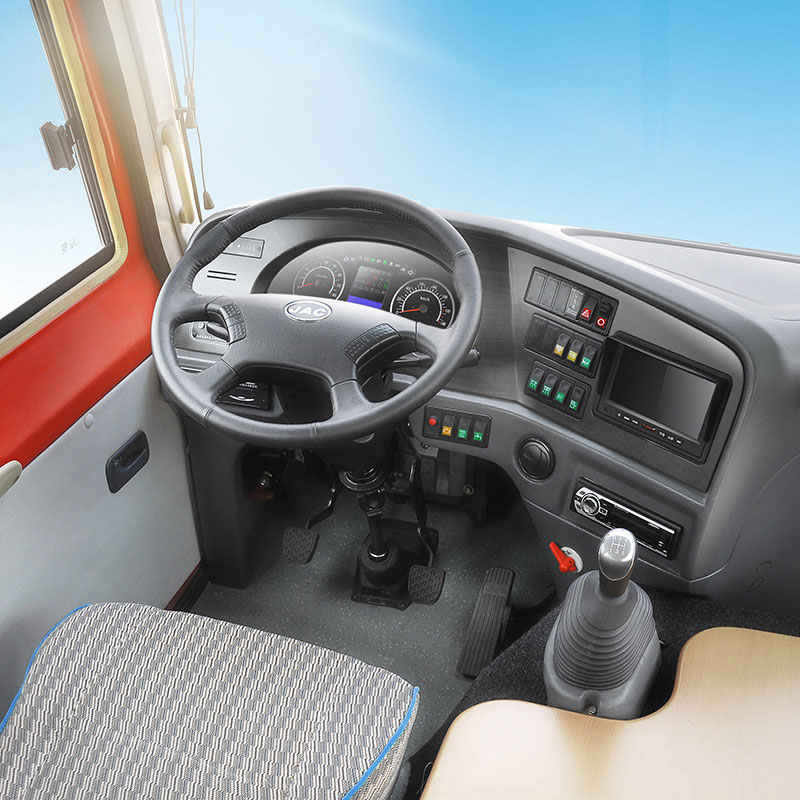

The main body of the dashboard is made of polyurethane foam molding process,
the dashboard panel and the inspection door cover are made of ABS injection molded parts,
and the dashboard panel is decorated with peach wood grain panels. The electrical layout and
control are more in line with ergonomics. The dashboard panel is equipped with a debris box,
cup holder, card slot, USB charging port to meet the individual needs of the driver
Main Parameters
| Dimensions(mm) | 6620×2250×2795(2995) | |
| Seats | 23+1（24-26） | |
| G.V.W(kg) | 6500 | |
| Front/rear Suspension(mm) | 1190/2122 | |
| Wheelbase（mm） | 3308 | |
| Fuel Tank Capacity(L) | 85L | |
| Maximum Speed(km/h) | 100 | |
Main Configurations
| Engine Type | YC4FA130-50 | YC4FA130-30 |
| Emission Standards | Euro V | Euro III |
| Gearbox | YES | |
| Retarder | NO | |
| Clutch | YES | |
| Suspension System | Leaf spring suspension、Front11/Rear 10 | |
| Front Axle | Front Axle 2.5T/Disc Brake | |
| Rear Axle | Rear Axle 4.5T/Drum Brake | |
| Service Brake | Double circuit pneumatic brake、Self-adjusting arm | |
| ABS | YES | |
| Steering System | Power Steering | |
| Tires | 7.00R16 | |
| Body Frame | Semi-Monocoque | |
| A/C | Optional | |
| Heater | Optional | |
| Luggage Compartment | Rear luggage compartment | |
| Passenger Door | Pneumatic folding door | |
| Others | Vehicle Electrophoresis | |
