12M 49 seat luxury coach

The overall shape of Ankai A9 49 seat luxury coach is elegant and magnificent, which effectively reduces the shape resistance and friction resistance of the vehicle, thus contributing to better power and economy.
  • Item No.:

    HFF6120A12
  • Payment:

    L/C,D/A,D/P,T/T
  • Product origin:

    China
  • Color:

    Optional
  • Shipping port:

    China port
  • Lead Time:

    60 days
  • Warning: Illegal string offset 'text' in /home/wwwroot/lamp01/domain/ankaiglobal.com/application/modules/front/views/scripts/companyshow/default/product_detail.phtml on line 88 Warning: Invalid argument supplied for foreach() in /home/wwwroot/lamp01/domain/ankaiglobal.com/application/modules/front/views/scripts/companyshow/default/product_detail.phtml on line 88
Follow Us :
  • Product Detail


ANKAI MONOCOQUE Structure Diagram and Advantages

Best safety performance,16Mn high-manganese alloy steel use,

Lower center of gravity, better stability Best riding comfort,Best convenience for maintenance



luxury coach


Lane Departure Warning System

In event of unconscious lane departure of the vehicle, it provides sound and light warnings to the driver,

till the driver corrects the driving direction. It’s intended to prevent the traffic accidents

arising from the unconscious lane departure due to driver’s fatigue or low concentration


49 seat luxury coach


ECAS system

The air suspension is equipped to improve the vehicle trafficability, with the vehicle height adjustment range at ±60mm


49 seat luxury coach bus

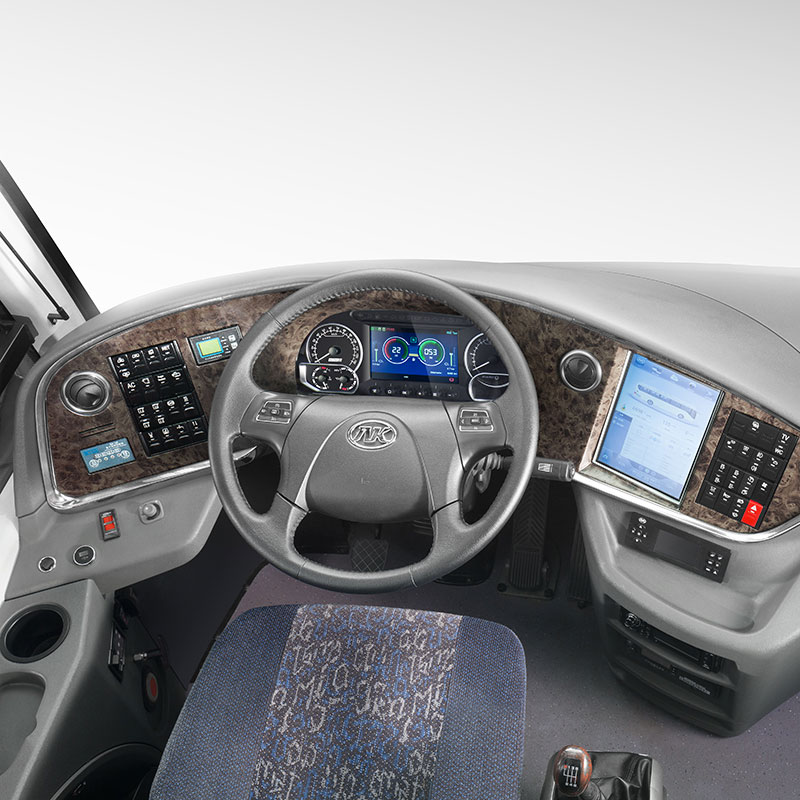

Intelligent control terminal technology

The new generation large-screen digital integrated intelligent control terminal is applied to

effectively integrate 7 major functions, namely vehicle information inquiry,

onboard wireless network, video monitoring system, intelligent expert system,

driving behavior evaluation, real-time safety monitoring, and remote monitoring system



Main Parameters
Dimensions(mm) 12000×2550×3695
Seats 49+1(24-56)
G.V.W(kg) 17800
Front/rear Suspension(mm) 2620/3300
Wheelbase(mm) 6080
Maximum Speed(km/h) 100
Fuel Tank Capacity(L) 260L


Main Configurations
Engine Type WP10.336E53 YC6MK380-30 ISLe 375 30
Emission Standards Euro V Euro III Euro III
Gearbox 6DS150TB(FAST)
Retarder YES
Clutch YES
Suspension System Air Suspension
Front Axle Front Axle 6.5T/Disc Brake
Rear Axle Rear Axle 13T/Disc Brake
Service Brake Double circuit air brake,Automatic gap adjustment arm
ABS YES
Steering System Power Steering
Tires 295/80R22.5
Body Frame Monocoque
A/C Overhead A/C,Cooling Capacity 30000Kcal/h
Heater Optional
Luggage Compartment Flip-on luggage compartment door
TV YES
Passenger Door Pneumatic swing door
Others Vehicle Electrophoresis,Hard disk player,Reversing monitor,Electromagnetic fan clutch
