ANKAI MONOCOQUE Structure Diagram and Advantages
Best safety performance,16Mn high-manganese alloy steel use，
Lower center of gravity, better stability Best riding comfort，Best convenience for maintenance
Lane Departure Warning System
In event of unconscious lane departure of the vehicle, it provides sound and light warnings to the driver,
till the driver corrects the driving direction. It’s intended to prevent the traffic accidents
arising from the unconscious lane departure due to driver’s fatigue or low concentration
ECAS system
The air suspension is equipped to improve the vehicle trafficability, with the vehicle height adjustment range at ±60mm

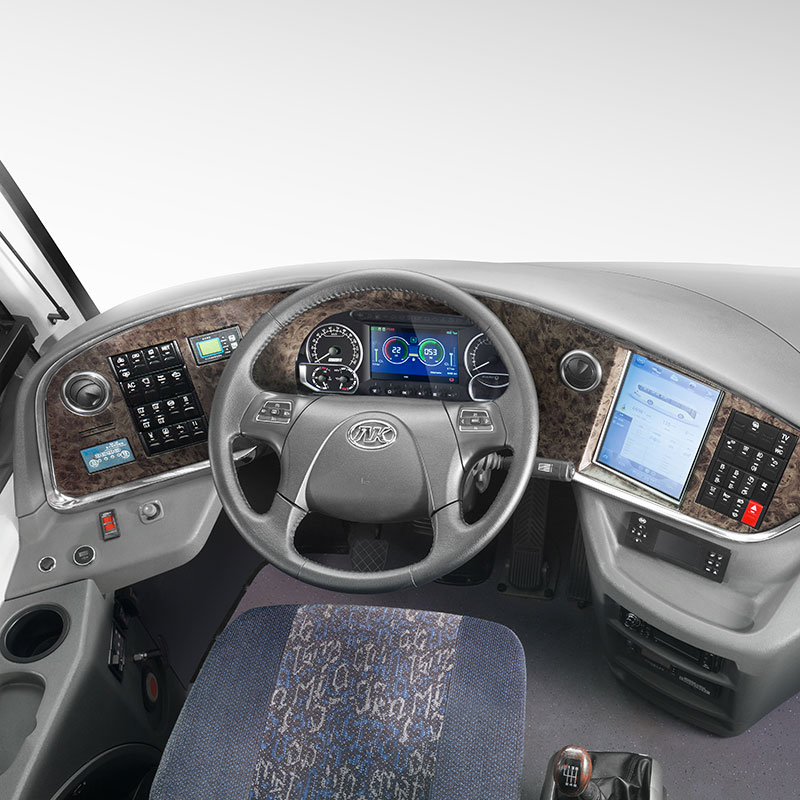

Intelligent control terminal technology
The new generation large-screen digital integrated intelligent control terminal is applied to
effectively integrate 7 major functions, namely vehicle information inquiry,
onboard wireless network, video monitoring system, intelligent expert system,
driving behavior evaluation, real-time safety monitoring, and remote monitoring system
Main Parameters
Dimensions(mm)
12000×2550×3720

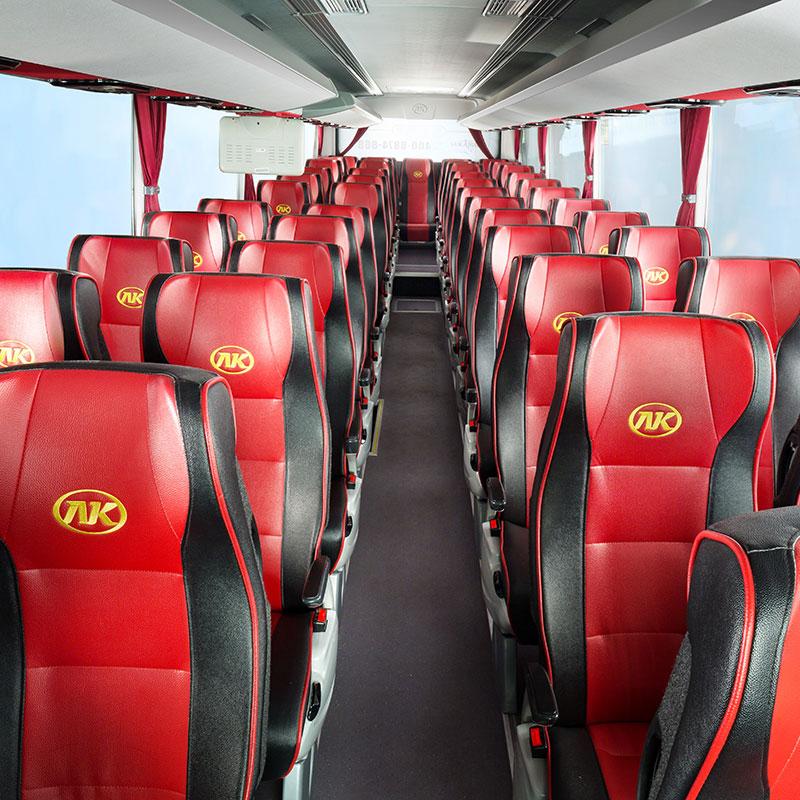

Seats
47+1+1
G.V.W(kg)
18000
Front/rear Suspension(mm)
2620/3300
Wheelbase（mm）
6080
Maximum Speed(km/h)
100
Fuel Tank Capacity(L)
530L
Main Configurations
Engine Type
L9 E6 C400
Emission Standards
Euro VI
Gearbox
AT
Retarder
YES
Clutch
NO
Suspension System
Air Suspension
Front Axle
ZF Front Axle/Disc Brake
Rear Axle
ZF Rear Axle/Disc Brake
Service Brake
Double circuit air brake、Automatic gap adjustment arm
ABS
ECAS/AEBS
Steering System
8098
Tires
295/80R22.5(Michelin)
Body Frame
Monocoque
A/C
Overhead A/C、Cooling Capacity 30000Kcal/h
Heater
YES
Luggage Compartment
Sliding luggage compartment door
TV
YES
Passenger Door
Pneumatic swing door
Others
Vehicle Electrophoresis,Hard disk player,Reversing monitor,Electromagnetic fan clutch,refrigerator，bathroom，Tire pressure monitoring，Centralized lubrication，CAN line，LDWS system
