Integrated design of the body and chassis, mature use of finite element analysis and calculation,
so that the force of the whole vehicle is uniform and the best balance is obtained
The power system can be equipped with different power configurations according to
the different needs of customers, providing you with a variety of flexible options
One-time pressing and forming of special-shaped through beams, high-quality materials,
reliable structure, and guarantee of the reliability of the whole vehicle

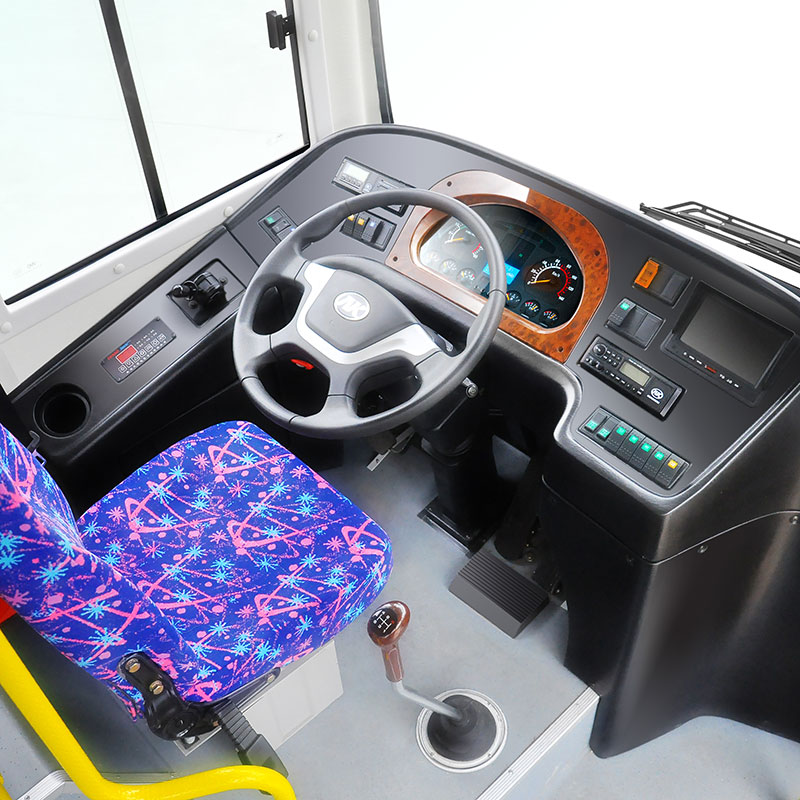

The semi-enclosed design of the driving area creates an independent driving environment for
the driver and avoids passenger interference
Main Parameters(HK6118G)
| Dimensions(mm) | 11490×2500×3070/3170 | |
| Seats | 32+1 | |
| G.V.W(kg) | 15500 | |
| Front/rear Suspension(mm) | 2600/3190 | |
| Wheelbase（mm） | 5700 | |
| Fuel Tank Capacity(L) | 200 | |
| Maximum Speed(km/h) | 69 | |
Main Configurations(HK6118G)
| Engine Type | YC6A260-30 | ISDE270 31 |
| Emission Standards | National III | National III |
| Gearbox | YES | |
| Retarder | NO | |
| Clutch | YES | |
| Suspension System | Leaf spring suspension/Front 4 Rear 5 | |
| Front Axle | 5.5T Front Axle/Disc Brake | |
| Rear Axle | 13.0T Rear Axle/Drum Brake | |
| Service Brake | Double circuit pneumatic brake、Self-adjusting arm | |
| ABS | YES | |
| Steering System | Power Steering | |
| Tires | 11R22.5 | |
| Body Frame | Semi-Monocoque | |
| A/C | Optional | |
| Heater | Optional | |
| Passenger Door | Pneumatic swing door | |
| Others | Vehicle Electrophoresis | |
Main Parameters(HFF6850GDE5B)
| Dimensions(mm) | 8500×2420×3120（3220） | ||
| Seats | 24+1 | ||
| G.V.W(kg) | 11500 | ||
| Front/rear Suspension(mm) | 2070/2530 | ||
| Wheelbase（mm） | 3900 | ||
| Fuel Tank Capacity(L) | 130 | ||
| Maximum Speed(km/h) | 69 | ||
Main Configurations(HFF6850GDE5B)
| Engine Type | YC4G180-50 | YC4G180-30 | WP5.180E51 |
| Emission Standards | National V | National III | National V |
| Gearbox | YES | ||
| Retarder | NO | ||
| Clutch | YES | ||
| Suspension System | Leaf Spring Suspension/Front 5 Rear 5 | ||
| Front Axle | 3.5T Front Axle/Disc Brake | ||
| Rear Axle | 8.0T Rear Axle/Drum Brake | ||
| Service Brake | Double circuit pneumatic brake、Self-adjusting arm | ||
| ABS | YES | ||
| Steering System | Power Steering | ||
| Tires | 8.25R20 | ||
| Body Frame | Semi-Monocoque | ||
| A/C | Optional | ||
| Heater | Optional | ||
| Passenger Door | Pneumatic Swing Door | ||
| Others | Vehicle Electrophoresis | ||
