TheAnkai EV G9 Seriesis a state-of-the-art electric city bus, meticulously engineered to meet the rigorous demands of modern urban transportation. Designed forzero-emission performanceandhigh passenger capacity, the EV G9 provides a sustainable, quiet, and comfortable transit solution for bustling metropolitan areas. With its contemporary design and robust electric powertrain, the EV G9 is the smart choice for building a cleaner, greener public transport network.
Main Features & Advantages
The EV G9 Series is built for reliability, efficiency, and passenger satisfaction.
Zero-Emission Green Transit: Fully electric operation eliminates tailpipe emissions, significantly reducing the environmental footprint of city fleets.
High-Volume Passenger Capacity: The low-floor design and spacious interior accommodate a large number of seated and standing passengers, maximizing transport efficiency on busy routes.
Enhanced Driver Ergonomics: Features a modern, well-designed driver's cabin with excellent visibility and intuitive controls for comfortable, safe operation.
Quiet & Comfortable Ride: The electric drive system ensures a near-silent operation, greatly improving the experience for both passengers and city residents.
Robust Structure: Built with high-quality components and a durable chassis to withstand continuous daily urban service.
Optimized Performance: Provides ample power and competitive driving range, suitable for intensive full-day operation.
Technical Specifications
| Parameter | Unit | Value (H9130D) |
| Model | - | H9130D |
| Dimensions (L×W×H) | mm | $9350 \times 2480 \times 3200$ |
| Rated Capacity | Seats+Standees | $18+56$ |
| Rated/Peak Power | kW | $90/180$ |
| Battery Capacity | kWh | $175$ |
| Driving Range | km | $200-300$ |
| Curb Weight | kg | $9000$ |
| GVW | kg | $14500$ |
| Max. Speed | km/h | $70$ |
| Max. Gradability | % | $18$ |
Applications
The EV G9 Series is the ideal electric bus for core public transportation services.
High-Density City Routes: Perfect for metropolitan arterial and feeder routes requiring high passenger volume and reliable scheduling.
Suburban Connectivity: Linking city centers with surrounding suburbs in a sustainable manner.
Dedicated BRT (Bus Rapid Transit) Corridors: Its high capacity makes it suitable for efficient transit systems.
Large Event & Expo Shuttles: Provides reliable, clean transport for high volumes of people.

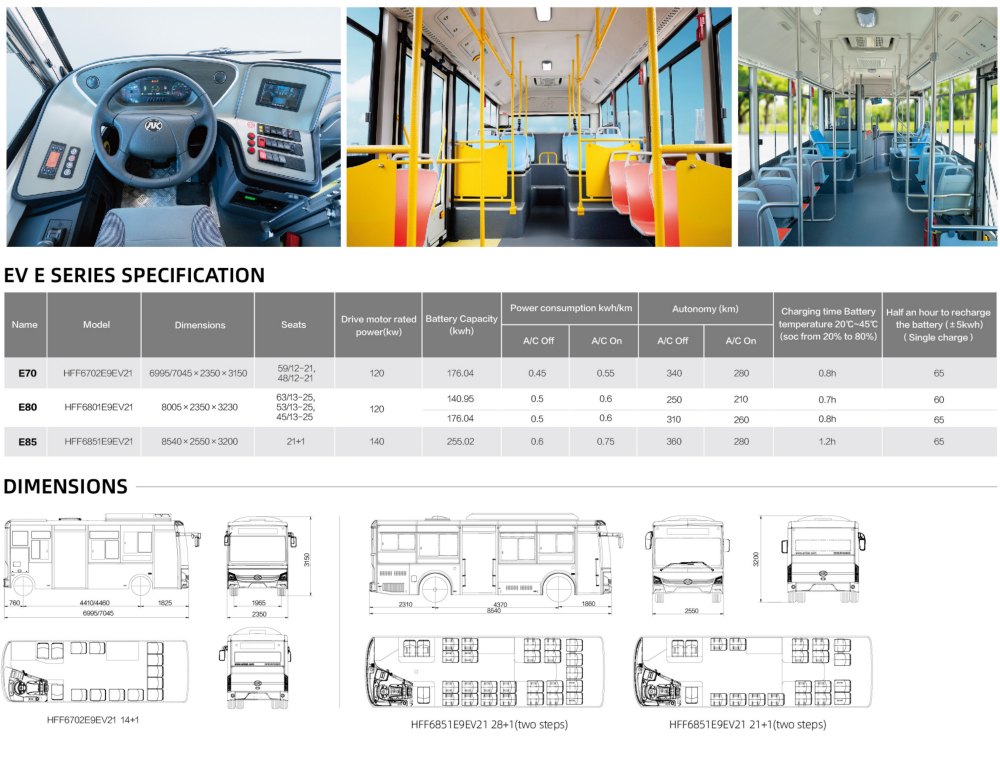

Image Display
